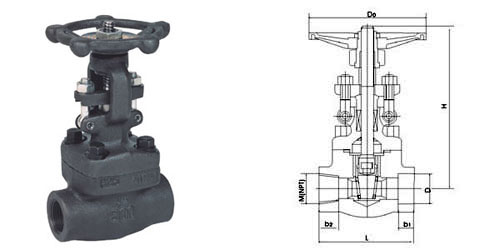

规格 主要尺寸和重量 Size Main Dimensions and Weight
| DN |
150 300 600Lb |
重量 W(kg)Weight |
| mm |
in |
L |
H |
D |
M(NPT) |
b1 |
b2 |
D0 |
| 15 |
1/2 |
80 |
151 |
21.8 |
1/2'' |
9.7 |
13.6 |
100 |
2.1 |
| 20 |
3/4 |
92 |
158 |
27.1 |
3/4'' |
12.7 |
13.9 |
100 |
2.3 |
| 25 |
1 |
111 |
185 |
33.8 |
1'' |
12.7 |
17.3 |
125 |
4.3 |
| 32 |
11/4 |
120 |
239 |
42.6 |
11/4'' |
12.7 |
18.0 |
160 |
5.4 |
| 40 |
11/2 |
120 |
243 |
48.7 |
11/2'' |
12.7 |
18.4 |
160 |
6.9 |
| 50 |
2 |
140 |
279 |
61.1 |
2'' |
15.9 |
19.2 |
180 |
10.8 |
| 900Lb 1500Lb |
| 15 |
1/2 |
79 |
214 |
21.8 |
1/2'' |
9.6 |
13.6 |
100 |
2.1 |
| 20 |
3/4 |
92 |
218 |
27.1 |
3/4'' |
12.7 |
13.9 |
100 |
2.3 |
| 25 |
1 |
111 |
239 |
33.8 |
1'' |
12.7 |
17.3 |
125 |
4.3 |
| 40 |
11/2 |
152 |
290 |
48.7 |
11/2'' |
12.7 |
18.4 |
160 |
6.9 |
| 50 |
2 |
171 |
313 |
61.1 |
2'' |
15.9 |
19.2 |
180 |
10.8 | |
